Hosiwell MIC Cable
Product Name : Hosiwell MIC Cable
Product Description

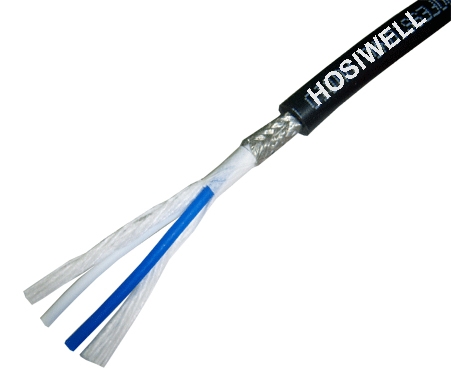

Hosiwell MIC Microphone and Music Instrument Cable
As a premium cable manufacturer, Hosiwell manufactures Microphone and music instrument cable series product in best quality.
Marking on cable surface: HOSIWELL CABLE MICXXXXXC ..... PROFESSIONAL AUDIO CABLE
Application
- Connecting low level microphones or musical instruments
- Key properties of this microphone(MIC) cable are ruggedness, flexibility, flex life and interference immunity
- Low-impedance MIC's utilize balanced 2 or 4 conductor(quad) designs
Specifications & Hosiwell Unique Features
- Stranded tinned copper wire conductor
- Color PE insulation
- Shield with paper tape 100% coverage
- Tinned copper wire braid shielded
- Weatherproof and sunlight resistance PVC jacket
- Anti-ant and mouse destroy PVC jacket available
- Rated temp. 80°C, rated voltage 300V
- UL File No.: E131077 , CSA LL80602
- (UL type AWM ,CSA FT1 Listed)
Enlargement
Products
| Part No. | Description | Brochure |
| MIC02004 | 24 AWG, 2P , 19/0.127mm , DCR 93.25 ohm/km | Download >> |
| MIC03502C | 22 AWG, 2C , 40/0.102mm , DCR 55.0 ohm/km | Download >> |
| MIC12CH | 24 AWG, 12P , 19/0.127mm , DCR 93.25 ohm/km | Download >> |
| MIC4CH | 24 AWG, 4P , 19/0.127mm , DCR 93.25 ohm/km | Download >> |
| MIC8CH | 24 AWG, 8P , 19/0.127mm , DCR 93.25 ohm/km | Download >> |
