Hosiwell 90XX Fire Alarm Cable

Product Name : Hosiwell 90XX Fire Alarm Cable

Product Description

Hosiwell 90XX Fire Alarm Cable for Power-Limited Fire Alarm Circuits

As a premium cable manufacturer, Hosiwell manufactures Cable for power-limited fire alarm circuitscable series product in best quality.

Marking on cable Surface: HOSIWELL CABLE P/N-90xx FIRE PROTECTIVE SIGNALING CIRCUIT CABLE E125840 (UL) TYPE FPL 105°C xxAWG LL80602 CSA TYPE IIA FT4 xxAWG 105°C 600V


Application

  • For power limited fire alarm circuits use
  • Passes UL type FTL vertical tray flame test

Fire Alarm Cable Unique Features & Specifications

  • Bare copper conductor
  • Color coded black and red
  • Shield with aluminum - mylar tape 100% coverage
  • Tinned copper drain wire
  • Low smoke and no halogen LSZH jacket
  • Rated temp. 105°C, rated voltage 600V

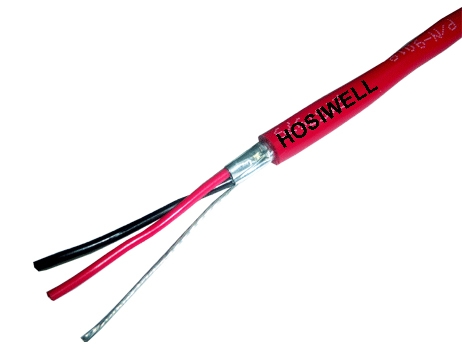

Hosiwell 90XX Fire Alarm Cable
Enlargement



    Products

    Hosiwell 90XX Fire Alarm Cable Parts lists

    proimages/Hosiwell_Wire_and_Cables_System/Intelligent_Building_Cables/TypeCM-b.jpg

    Part No. Description Brochure
    P/N-9012 12 AWG, 1P , DCR 5.31 ohm/km Download >>
    P/N-9014 14 AWG, 1P , DCR 8.45 ohm/km Download >>
    P/N-9016 16 AWG, 1P , DCR 13.5 ohm/km Download >>
    P/N-9018 18 AWG, 1P , DCR 21.4 ohm/km Download >>
    P/N-9020 20 AWG, 1P , DCR 36.4 ohm/km Download >>
    P/N-9022 22 AWG, 1P , DCR 59.1 ohm/km Download >>
