Hosiwell 92XX Audio and Instrument Control
Product Name : Hosiwell 92XX Audio and Instrument Control
Product Description
Hosiwell 92XX Audio and Instrument Control Cable
As a premium cable manufacturer, Hosiwell manufactures Cable for audio and instrument control series product in best quality.
Marking on cable surface: HOSIWELL CABLE P/N-92xx ..... E135928 - T (UL) TYPE CM 75°C 300V xxAWG LL80602 CSA TYPE IIA CMG FT4 75°C 300V xxAWG
Application
- For building sound, broadcast, audio control, and instrument use
- Passes UL type FT4 flame test
Specifications & Hosiwell Unique Features
- Tinned copper conductor
- Color coded PE insulation,black and clear
- Shield with aluminum - mylar tape 100% coverage
- Tinned copper drain wire
- Weatherproof and sunlight resistance PVC jacket
- Anti-ant and mouse destroy PVC jacket-available
- Rated temp. 75°C , rated voltage 300V
- UL File No.: E135928 , CSA File No.: LL80602
- (UL type CM and CSA type CMG FT4 Listed )

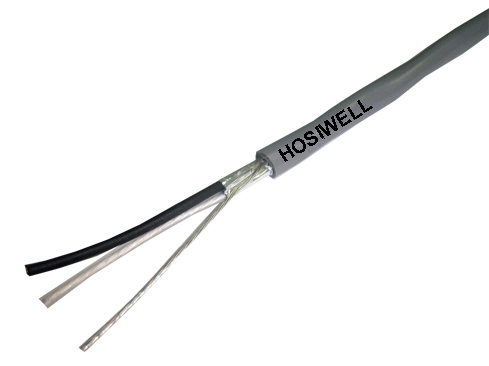

Enlargement
Products
| Part No. | Description | Brochure |
| P/N-9212 | 12 AWG, 1P , DCR 5.61 ohm/km | Download >> |
| P/N-9214 | 14 AWG, 1P , DCR 8.96 ohm/km | Download >> |
| P/N-9216 | 16 AWG, 1P , DCR 14.3 ohm/km | Download >> |
| P/N-9218 | 18 AWG, 1P , DCR 22.7 ohm/km | Download >> |
| P/N-9220 | 20 AWG, 1P , DCR 35.8 ohm/km | Download >> |
| P/N-9222 | 22 AWG, 1P , DCR 57.4 ohm/km | Download >> |
