Hosiwell - IDEC遠距離,高速率 數據傳輸電纜電線系列

產品名稱 : Hosiwell - IDEC遠距離,高速率 數據傳輸電纜電線系列


As a premium cable manufacturer, Hosiwell manufactures Extended distance data transmission cable series product in best quality; Marking On The Cable Surface : HOSIWELL CABLE IEDC22XXP IEDC CABLE ..... E125840 - T (UL) TYPE CL3 75°C XX AWG LL80602 CSA TYPE AWM FT4 75°C XX AWG

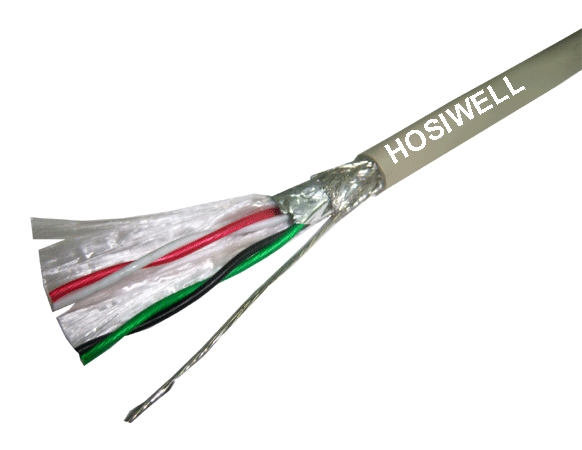

Hosiwell Product Description
Tinned stranded copper conductor .
Color coded PE insulation.
Shield with aluminum - mylar tape 100% coverage .
Tinned copper braid shield 85% coverage.
Tinned copper drain wire (22AWG , 7/0.26) .
Weatherproof and sunlight resistance PVC jacket .
Anti-ant and mouse destroy PVC jacket available .
Rated temp. 75°C, rated voltage 300V.
Low capacitance : 16 ± 2 pf/ft
Transmission distance : UP to 500 ft
UL File No.: E125840, CSA File No.: LL80602 .
( UL type CL2 , CL3 and CSA type AWM FT4 Listed )

Hosiwell - IDEC遠距離,高速率 數據傳輸電纜電線系列




    Part No. Description Brochure
    IEDC22XXP 22 AWG, DCR 57.4 ohm/km Paired Download >>
    IEDC24XXP 24 AWG, DCR 90.9 ohm/km Paired Download >>
