Hosiwell - JIS 75歐姆影像專用同軸電纜線系列
產品名稱 : Hosiwell - JIS 75歐姆影像專用同軸電纜線系列
產品描述

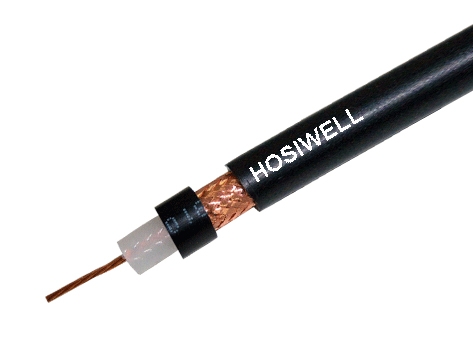

As a premium coaxial cable manufacturer, Hosiwell manufactures the JIS 75 ohm coaxial cable for Video Application series in best quality; Marking On The Cable Surface : HOSIWELL CABLE XXC - 2V.S COAXIAL CABLE E131077 AWM 1354 60°C 30V 1CXX SHIELDED
| Hosiwell Product Description | |
| Interior lines for Monitoring system. CCTV feeder lines, Wiring between the camera and control unit and Video signal transmission Standard Construction : Solid or standed, copper or copper covered steel conductior, PE insulation, bare copper braid shield 95% coverage. |
|
點小圖放大圖
產品介紹
| Part No. | Description | Brochure |
| 2.5C-2V | Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 26AWG , 1/0.404mm | Download >> |
| 3C-2V | Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 24AWG , 1/0.53mm | Download >> |
| 3C-2V.S | Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 24AWG , 7/0.20mm | Download >> |
| 5C-2V | Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 20AWG , 1/0.80mm | Download >> |
| 5C-2V.S | Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 20AWG , 21/0.18mm | Download >> |
| 7C-2V | Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 18AWG , 7/0.404mm | Download >> |
