Hosiwell JIS 75 ohm Coaxial Cable for Satellite Broadcast

Product Name : Hosiwell JIS 75 ohm Coaxial Cable for Satellite Broadcast

Product Description

Hosiwell JIS 75 ohm coaxial cable for Satellite Broadcast

As a premium coaxial cable manufacturer, Hosiwell manufactures JIS 75 ohm coaxial cable for Satellite Broadcast Receivers Application series in best quality.

Marking on cable surface: HOSIWELL CABLE XXC - FB COAXIAL CABLE E131077 AWM 1354 60°C 30V 1CXX SHIELDED


Application
  • TV receiver equipment and accessories, Satellite communications, two-ways CATV
  • Direct connect or star configuration
Specification & Hosiwell Unique Features
  • Solid annealed copper conductor
  • Gas Injection Foamed Polyethylene Insulation
  • Double side aluminum foil 100% coverage
  • Tinned copper shield 95% coverage
  • Standard Attenuation @20 C (dB/100m) is 91 (for 10C-FB), 106 (for 7C-FB) and 145(for 5C-FB)at 470 MHz
  • Normal Impedance: 75ohm
  • Manufactured according to JIS and AWM Standard

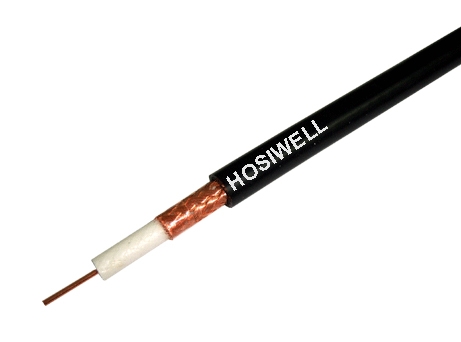

Hosiwell JIS 75 ohm Coaxial Cable for Satellite Broadcast
Enlargement



    Products

    proimages/Coaxial_Cabling_System/JIS_75/JIS75B/AWM....jpg   proimages/Coaxial_Cabling_System/JIS_75/JIS75B/75ohm.jpg   proimages/Coaxial_Cabling_System/JIS_75/JIS75B/fff.jpg

    Part No. Description Brochure
    10C-FB Gas Injection Foam PE , 100% Al Foil , 95% TC Braid , 1/2.0mm , PVC jacket Download >>
    3C-FB 95% BC braid shield , Gas Injection Foam PE insulation , PVC jacket , 22AWG , 1/0.65mm Download >>
    3C-FV Bonded foil, 95% BC braid shield , Gas Injection Foam PE insulation , PVC jacket , 22AWG , 1/0.65mm Download >>
    5C-FB Gas Injection Foam PE , 100% Al Foil , 95% TC Braid , 1/1.05mm , PVC jacket Download >>
    7C-FB Gas Injection Foam PE , 100% Al Foil , 95% TC Braid , 1/1.5mm , PVC jacket Download >>
