Hosiwell JIS 75 ohm Coaxial Cable for Electronic Equipment
Product Name : Hosiwell JIS 75 ohm Coaxial Cable for Electronic Equipment
Product Description
Hosiwell JIS 75 ohm Coaxial Cable for Electronic Equipment
As a premium coaxial cable manufacturer, Hosiwell manufactures the JIS 75 ohm coaxial cable for Electronic Equipment Application series in best quality.
Marking on cable surface: HOSIWELL CABLE XXC - 2V COAXIAL CABLE E131077 AWM 1354 60°C 30V 1CXX SHIELDED
Application
- TV, radio or phone receivers on automobile or ship, Car navigation system (GPS)
- Wiring inside telecommunications and electronic equipment such as portable phone
Specification & Hosiwell Unique Features
- Solid or stranded cpper or copper-covered steel conductor
- Solid Polyethylene Insulation
- Bare copper braid shield 95% coverage
- Standard Attenuation @20 C (dB/100m) is 86 (for 2.5D-2V),155 (for 1.5D-2V),90 (for 2.5C-2V) and 130 (for 1.5C-2V) at 30 MHz
- Normal Impedance: 75ohm
- Manufactured according to JIS and AWM Standard

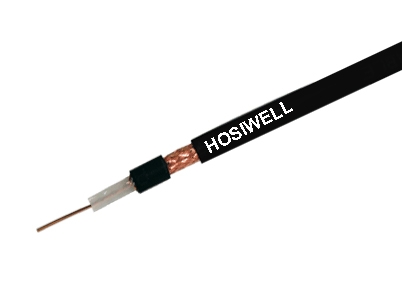

Enlargement
Products
| Part No. | Description | Brochure |
| 1.5C-2V | Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 1/0.26mm | Download >> |
| 2.5C-2V | Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 1/0.4mm | Download >> |
