Hosiwell - RG6型 5C-FB 3GHz DBS同軸電纜線系列

產品名稱 : Hosiwell - RG6型 5C-FB 3GHz DBS同軸電纜線系列


As a premium coaxial cable manufacturer, Hosiwell manufactures the RG 6 Type coaxial for DBS Application Series in best quality; Marking On The Cable Surface : HOSIWELL CABLE RG-6/S90 E138991 (UL) TYPE CATV 75°C 18AWG

Hosiwell Product Description
DBS (Direct Broadcast Satellite) Coaxial Cable Application :
Link satellite dish to all of the receivers in your home with this
high-quality Quad Shield Coaxial Cable. This cable is specially
designed to carry those high-frequency signals, so each
satellite receiver will get maxinum signal strength.

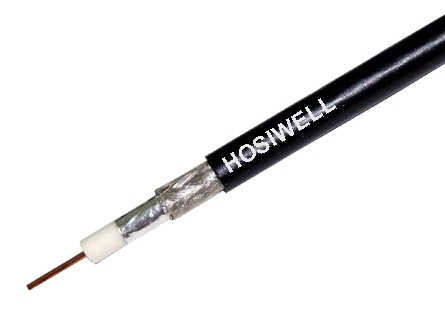

Strandard Construction :

RG6 18 AWG (1.02mm (0.040 in.)) bare copper or bare
copper-covered steel center conductor; gas expanded
polythylene dieletric; inner shield
aluminum-polypropylene-aluminum laminated tape with
overlap bonded to dielectric; outer shield of 34 AWG (0.16 mm)
bare aluminum braid wire; jacket of black polyvinylchloride.
Nominal outside diameter is 6.91 mm. (0.272 in.). Messenger
Breaking Strength (Min) is 166 kgf.

Hosiwell - RG6型 5C-FB 3GHz DBS同軸電纜線系列



    proimages/Coaxial_Cabling_System/DBS_COAXIAL_CABLE/RG6/UL....10.jpg     proimages/Coaxial_Cabling_System/DBS_COAXIAL_CABLE/RG6/RG6500m.jpg

    proimages/Coaxial_Cabling_System/DBS_COAXIAL_CABLE/RG6/75ohm.jpg     proimages/Coaxial_Cabling_System/DBS_COAXIAL_CABLE/RG6/RG6.jpg

    Part No. Description Brochure
    D-RG6-S90 Bonded foil, 90% Al braid, PVC jacket Download >>
