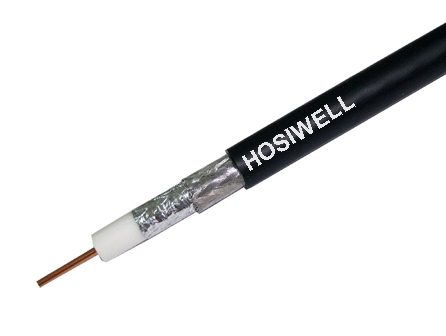

Hosiwell RG 11 Type 3GHz Coaxial Cable for DBS Application
Product Name : Hosiwell RG 11 Type 3GHz Coaxial Cable for DBS Application
Product Description
Hosiwell RG 11 Type 3GHz Coaxial Cable for DBS Application
As a premium coaxial cable manufacturer, Hosiwell manufactures the RG 11 Type coaxial cable for DBS Application Series in best quality.
Marking on cable surface: HOSIWELL CABLE RG-11/S90 E138991 (UL) TYPE CATV 75°C 14AWG
Application
- Direct broadcast satellite (DBS) refers to satellite television (TV) systems in which the end users receive signals directly from satellites
- Link satellite dish to the receivers with this high-quality quad Shield D-RG-11 Coaxial Cable for maximum signal strength
Specification & Hosiwell Unique Features
- 14 AWG {1.63 mm (0.064 in.)} copper covered steel center conductor
- Gas expanded polyethylene dielectric
- Inner shield aluminum-polypropylene-aluminated tape with overlap bonded to dielectric
- Standard Attenuation @20 C(dB/100m) is 14.8 at 1000 MHz
- Outer shield of 34 AWG (0.16 mm) bare aluminum braid wire
- Jacket of black PVC Nominal outside diameter is 10.03 mm (0.395in.)
- Messenger Breaking Strength (Min) is 166 kgf
- Gas Injection Insulation Coaxial Cable
- Hosiwell Standard Transmission distance up to 1100m
- 75 OHM
- Standard Packing 305 m/box
- Special Packing 2000 m/drum
- UL Certification
Enlargement
Products
| Part No. | Description | Brochure |
| D-RG11-S90 | Bonded foil, 90% Al braid, PVC jacket | Download >> |
