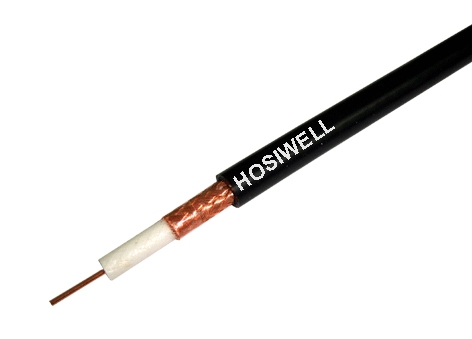

Hosiwell RG 6 Type Coaxial Cable for CCTV Application
Product Name : Hosiwell RG 6 Type Coaxial Cable for CCTV Application
Product Description
Hosiwell RG 6 Type coaxial cable for CCTV Application
As a premium coaxial cable manufacturer, Hosiwell manufactures RG 6 Type coaxial cable for CCTV Application Series in best quality.
Marking on cable surface: HOSIWELL CABLE RG-6/U TYPE CCTV / VIDEO CABLE F-RG6/U-XX E131077 AWM 1354 60°C 30V 1C18 SHIELDED 95%
Application
- Traditionally video transmission in CCTV(closed-circuit television) system is done using 75 ohm coaxial cables. Hosiwell manufactured this F-RG-6/U 75ohm cables meet the UL 758 type 1354 specification.
- RG 6 can be used as Analog Video Cable
Specification & Hosiwell Unique Features
- Conductor: 1/1.02 No/mm Material: Bare Copper
- Insulation:Gas Injection Foam PE
- Shield: 95% Bare copper Braid
- Jacket: O.D. 7.30 ; Material : PVC
- LSZH(Low Smoke Zero Halogen) jacket optional
- Normal Impedance: 75 ohm
- Standard Attenuation @20 C(dB/100m) is 17.4 at 700 MHz
- Normal Velocity of Propagation: 85%
- Gas Injection Insulation Coaxial Cable
- Hosiwell Standard Transmission distance up to 600m
- 75 OHM
- Standard Packing 305 m/box 500m/drum
- Special Packing 2000 m/drum
- UL Certification
Enlargement
Products
| Part No. | Description | Brochure |
| F-RG-6/U | Gas injection Foam PE , 95% BC braid (0.120) , 1/1.02 mm. , PVC jacket | Download >> |
| F-RG-6/U-M | Gas injection Foam PE , 95% BC braid (0.120) with Messenger, 1/1.02 mm. , PVC jacket | Download >> |
