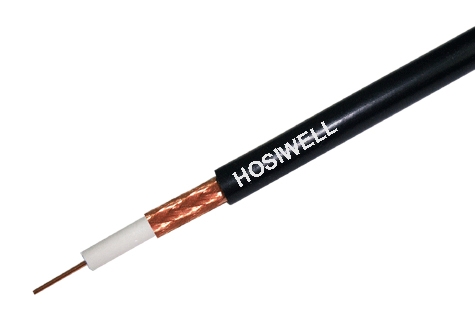

Hosiwell RG 59 Type coaxial cable for CCTV Application

Product Name : Hosiwell RG 59 Type coaxial cable for CCTV Application

Product Description

Hosiwell RG 59 Type coaxial cable for CCTV Application

As a premium coaxial cable manufacturer, Hosiwell manufactures the RG 59 Type coaxial cable for CCTV Application Series in best quality.

Marking on cable surface: HOSWELL CABLE RG-59/U TYPE CCTV / VIDEO CABLE F-RG59/U-XX E131077 AWM 1354 60°C 30V 1C20 SHIELDED 95%


Application
  • Traditionally video transmission in CCTV(closed-circuit television) system is done using 75 ohm coaxial cables. Hosiwell manufactured this RG 59 TYPE 75ohm cables meet the UL 758 type 1354 specification.
  • F-RG-59 can be used as Analog Video Cable
Specification & Hosiwell Unique Features
  • Conductor: 1/0.80 No/mm Material: Bare Copper
  • Insulation:Gas Injection Foam PE
  • Shield: 95% Bare copper Braid
  • Jacket: O.D. 6.15 ; Material : PVC
  • LSZH(Low Smoke Zero Halogen) jacket optional
  • Normal Impedance: 75 ohm
  • Standard Attenuation @20 C(dB/100m) is 23 at 700 MHz
  • Normal Velocity of Propagation: 85%
  • Gas Injection Insulation Coaxial Cable
  • Hosiwell Standard Transmission distance up to 300m
  • 75 OHM
  • Standard Packing 305 m/box
  • Special Packing 2000 m/drum
  • UL Certification

Hosiwell RG 59 Type coaxial cable for CCTV Application
Enlargement



    Products

    proimages/Coaxial_Cabling_System/CCTV_COAXIAL_CABLE/RG59/AWM....jpg     proimages/Coaxial_Cabling_System/CCTV_COAXIAL_CABLE/RG59/RG59305m.jpg


    proimages/Coaxial_Cabling_System/CCTV_COAXIAL_CABLE/RG59/75ohm.jpg     proimages/Coaxial_Cabling_System/CCTV_COAXIAL_CABLE/RG59/RG59new1.jpg

    Part No. Description Brochure
    F-RG-59/U Gas injection Foam PE , 95% BC braid (0.120) , 1/0.80 mm. , PVC jacket Download >>
    F-RG-59/US Gas injection Foam PE , 95% BC braid (0.120) , 7/0.26 mm. , PVC jacket Download >>
    F-RG-59/US-M Gas injection Foam PE , 95% BC braid (0.120) with Messenger, 7/0.26 mm. , PVC jacket Download >>
