Hosiwell RG 6 Type Coaxial Cable for CATV Application
Product Name : Hosiwell RG 6 Type Coaxial Cable for CATV Application
Product Description
Hosiwell RG 6 Type coaxial cable for CATV Application
As a premium coaxial cable manufacturer, Hosiwell manufactures the RG 6 Type coaxial cables Series in best quality.
Marking on cable surface: HOSIWELL CABLE RG-6/XX-XX E138991 (UL) TYPE CATV 75°C 18AWG
Application
- RG6 coaxial cable for CATV/MATV, Broadband, HDTV and Satellite Broadcasting Transmission use
- RG6 can be used as a branch cable
Specification & Hosiwell Unique Features
- 18 AWG {1.02 mm (0.040 in.)} copper covered steel center conductor
- Gas expanded polyethylene dielectric
- Inner shield aluminum-polypropylene-aluminated tape with overlap bonded to dielectric
- RG6 can be used as a branch cable
- Outer shield of 34 AWG (0.16 mm) bare aluminum braid wire
- Jacket of black PVC Nominal outside diameter is 6.91 mm (0.272in.)
- Messenger Breaking Strength (Min) is 82 kgf
- Gas Injection Insulation Coaxial Cable
- Hosiwell Standard Transmission distance up to 600m
- 75 OHM
- Standard Packing 305 m/box 500m/drum
- Special Packing 2000 m/drum
- UL Certification

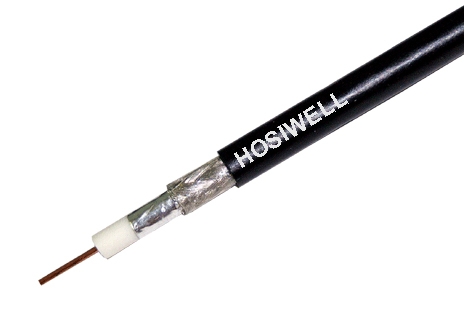

Enlargement
Products
Part No. | Description | Brochure |
C-RG6-QS | Bonded foil, 60% braid, non-bonded tape, 42% braid, PVC jacket , 18 AWG, 1C , 1/1.024 mm. | Download >> |
C-RG6-QS-F | Bonded foil, 60% braid, non-bonded tape, 42% braid, flooding compound , PVC jacket , 18 AWG, 1C , 1/1.024 mm. | Download >> |
C-RG6-QS-M | Bonded foil, 60% braid, non-bonded tape, 42% braid, PVC jacket with Messenger , 18 AWG, 1C , 1/1.024 mm. | Download >> |
C-RG6-S60 | Bonded foil, 60% braid, PVC jacket , 18 AWG, 1C , 1/1.024 mm | Download >> |
C-RG6-S60-F | Bonded foil, 60% braid, flooding compound , PVC jacket , 18 AWG, 1C , 1/1.024 mm | Download >> |
C-RG6-S60-M | Bonded foil, 60% braid, PVC jacket with Messenger , 18 AWG, 1C , 1/1.024 mm | Download >> |
C-RG6-S90 | Bonded foil, 90% braid, PVC jacket , 18 AWG, 1C , 1/1.024 mm | Download >> |
C-RG6-S90-F | Bonded foil, 90% braid, flooding compound , PVC jacket , 18 AWG, 1C , 1/1.024 mm. | Download >> |
C-RG6-S90-M | Bonded foil, 90% braid, PVC jacket with Messenger , 18 AWG, 1C , 1/1.024 mm. | Download >> |
C-RG6-TS60 | Bonded foil, 60% braid, non-bonded tape, PVC jacket , 18 AWG, 1C , 1/1.024 mm. | Download >> |
C-RG6-TS60-F | Bonded foil, 60% braid, non-bonded tape, flooding compound , PVC jacket , 18 AWG, 1C , 1/1.024 mm. | Download >> |
C-RG6-TS60-M | Bonded foil, 60% braid, non-bonded tape, PVC jacket with Messenger , 18 AWG, 1C , 1/1.024 mm. | Download >> |
