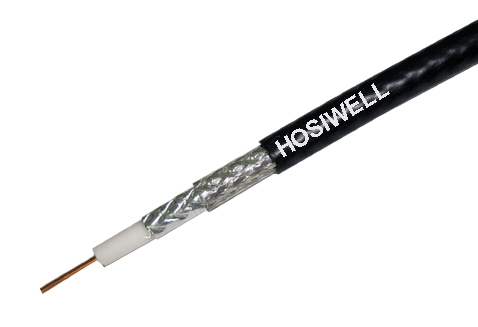

Hosiwell RG 59 Type Coaxial Cable for CATV Application

Product Name : Hosiwell RG 59 Type Coaxial Cable for CATV Application

Product Description

Hosiwell RG 59 Type coaxial cable for CATV Application

As a premium coaxial cable manufacturer, Hosiwell manufactures the RG 59 Type coaxial cable for CATV ApplicationSeries in best quality.

Marking on cable surface: HOSIWELL CABLE RG-59/XXX E138991 (UL) TYPE CATV 75°C 20AWG


Application
  • RG59 coaxial cable for CATV/MATV, Broadband, HDTV and Satellite Broadcasting Transmission use
  • RG59 can be used as a branch cable
Specification & Hosiwell Unique Features
  • 20 AWG {0.81mm (0.032 in.)} copper covered steel center conductor
  • Gas expanded polyethylene dielectric
  • Inner shield aluminum-polypropylene-aluminated tape with overlap bonded to dielectric
  • Outer shield of 34 AWG (0.16 mm) bare aluminum braid wire
  • RG59 can be used as a branch cable
  • Jacket of black PVC Nominal outside diameter is 6.10 mm. (0.240 in.)
  • Messenger Breaking Strength (Min) is 82 kgf
  • Gas-injected Foam PE Insulation
  • Hosiwell Standard Transmission distance up to 300m
  • 75 OHM
  • Standard Packing 305 m/box
  • Special Packing 2000 m/drum
  • UL Certification

Hosiwell RG 59 Type Coaxial Cable for CATV Application
Enlargement



    Products

    proimages/Coaxial_Cabling_System/CATV_COAXIAL_CABLE/RG59/UL....10.jpg     proimages/Coaxial_Cabling_System/CATV_COAXIAL_CABLE/RG59/RG59305m.jpg


    proimages/Coaxial_Cabling_System/CATV_COAXIAL_CABLE/RG59/75ohm.jpg     proimages/Coaxial_Cabling_System/CATV_COAXIAL_CABLE/RG59/RG59new.jpg



    Part No. Description Brochure
    C-RG59-QS Bonded foil, 53% braid (0.160), non-bonded tape, 35% braid (0.160), PVC jacket , 20 AWG, 1C, 1/0.813mm. Download >>
    C-RG59-QS-F Bonded foil, 53% braid , non-bonded tape, 35% braid , flooding compound , PVC jacket , 20 AWG, 1C, 1/0.813mm. Download >>
    C-RG59-QS-M Bonded foil, 53% braid (0.160), non-bonded tape, 35% braid (0.160), PVC jacket with Messenger , 20 AWG, 1C, 1/0.813mm. Download >>
    C-RG59-S67 Bonded foil, 67% braid (0.160), PVC jacket , 20 AWG, 1/0.813 mm. Download >>
    C-RG59-S67-F Bonded foil, 67% braid (0.160), flooding compound , PVC jacket , 20 AWG, 1C , 1/0.813mm. Download >>
    C-RG59-S67-M Bonded foil, 67% braid (0.160), PVC jacket with Messenger , 20 AWG, 1C , 1/0.813mm. Download >>
    C-RG59-S95 Bonded foil, 95% braid , PVC jacket Download >>
    C-RG59-S95-F Bonded foil, 95% braid , flooding compound , PVC jacket Download >>
    C-RG59-S95-M Bonded foil, 95% braid , PVC jacket with Messenger Download >>
    C-RG59-TS67 Bonded foil, 67% braid (0.160), non-bonded tape, PVC jacket , 20 AWG, 1C, 1/0.813mm. Download >>
    C-RG59-TS67-F Bonded foil, 67% braid (0.160), non-bonded tape, flooding compound , PVC jacket , 20 AWG, 1C, 1/0.813mm. Download >>
    C-RG59-TS67-M Bonded foil, 67% braid (0.160), non-bonded tape, PVC jacket with Messenger , 20 AWG, 1C, 1/0.813mm. Download >>
