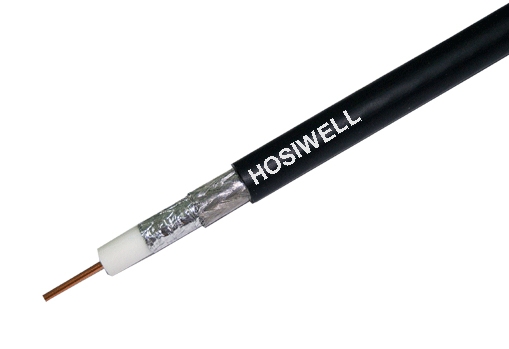

Hosiwell RG 11 Type Coaxial Cable for CATV Application

Product Name : Hosiwell RG 11 Type Coaxial Cable for CATV Application

Product Description

Hosiwell RG 11 Type Coaxial Cable for CATV Application

As a premium coaxial cable manufacturer, Hosiwell manufactures the RG 11 Type coaxial cable for CATV Application series product in best quality.

Marking on cable surface: HOSIWELL CABLE RG-11/XX-X E138991 (UL) TYPE CATV 75°C 14AWG


Application
  • RG11 drop cable for CATV/MATV, Broadband, HDTV and Satellite Broadcasting Transmission use
  • RG11 can be used as a trunk cable
Specification & Hosiwell Unique Features
  • 14 AWG {1.63 mm (0.064 in.)} copper covered steel center conductor
  • Gas expanded polyethylene dielectric
  • Inner shield aluminum-polypropylene-aluminated tape with overlap bonded to dielectric
  • RG11 can be used as a trunk cable
  • Outer shield of 34 AWG (0.16 mm) bare aluminum braid wire
  • RG11 can be used as a trunk cable
  • Jacket of black PVC Nominal outside diameter is 10.03 mm (0.395in.)
  • Messenger Breaking Strength (Min) is 166 kgf
  • Gas Injection Insulation Coaxial Cable
  • Hosiwell Standard Transmission distance up to 1100m
  • 75 OHM
  • Standard Packing 305 m/box 1000m/drum
  • Special Packing 2000 m/drum
  • UL Certification

Hosiwell RG 11 Type Coaxial Cable for CATV Application
Enlargement



    Products

    proimages/Coaxial_Cabling_System/CATV_COAXIAL_CABLE/RG11/UL....10.jpg      proimages/Coaxial_Cabling_System/CATV_COAXIAL_CABLE/RG11/RG11305m.jpg


    proimages/Coaxial_Cabling_System/CATV_COAXIAL_CABLE/RG11/75ohm.jpg      proimages/Coaxial_Cabling_System/CATV_COAXIAL_CABLE/RG11/RG11.jpg


    Part No.
    Description Brochure
    C-RG11-QS Bonded foil, 60% braid, non-bonded tape, 40% braid, PVC jacket , 14 AWG, 1C, 1/1.63 mm. Download >>
    C-RG11-QS-F Bonded foil, 60% braid, non-bonded tape, 40% braid, flooding compound, PVC jacket , 14 AWG, 1C, 1/1.63 mm. Download >>
    C-RG11-QS-F-M Bonded foil, 60% braid, non-bonded tape, 40% braid, flooding compound, PVC jacket with Messenger , 14 AWG, 1C, 1/1.63 mm. Download >>
    C-RG11-QS-M Bonded foil, 60% braid, non-bonded tape, 40% braid, PVC jacket with Messenger , 14 AWG, 1C, 1/1.63 mm. Download >>
    C-RG11-S60 Bonded foil, 60% braid, PVC jacket , 14 AWG, 1C, 1/1.63 mm. Download >>
    C-RG11-S60-M Bonded foil, 60% braid, PVC jacket with Messenger , 14 AWG, 1C, 1/1.63 mm. Download >>
    C-RG11-S90 Bonded foil, 90% braid, PVC jacket , 14 AWG, 1C, 1/1.63 mm. Download >>
    C-RG11-S90-M Bonded foil, 90% braid, PVC jacket with Messenger , 14 AWG, 1C, 1/1.63 mm. Download >>
    C-RG11-TS60 Bonded foil, 60% braid, non-bonded tape, PVC jacket , 14 AWG, 1C, 1/1.63 mm. Download >>
    C-RG11-TS60-M Bonded foil, 60% braid, non-bonded tape, PVC jacket with Messenger , 14 AWG, 1C, 1/1.63 mm. Download >>
