Hosiwell Stranded Loose Tube Armored Cable (GYTY53)

Product Name : Hosiwell Stranded Loose Tube Armored Cable (GYTY53)

Product Description

Hosiwell Stranded Loose Tube Armored Cable (GYTY53)

As a technical Fiber Optics Cable manufacturer, Hosiwell also supplies the Stranded Loose Tube Armored Cable (GYTY53) series product in best quality;


Application
  • Application: Duct / Aerial /Direct buried
  • Standard: YD/T 901-2001 and IEC 60794-1
Specification & Hosiwell Unique Features
  • The fiber, 250µm, are positioned in a loose tube made of a high modulus plastic.
  • Tubes are filled with a water-resistant filling compound
  • A steel wire, locates in the center of core as a metallic strength member
  • Tubes (and fillers) are stranded around the strength member into a compact and circular cable core
  • The cable core is filled with filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath. The cable is completed with a PE outer sheath.

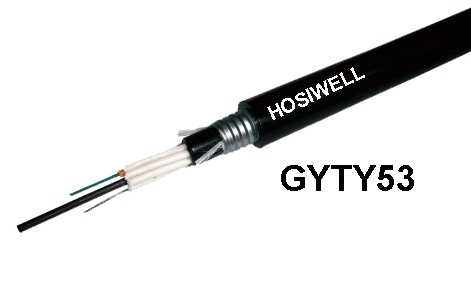

Hosiwell Stranded Loose Tube Armored Cable (GYTY53)
Enlargement



    Products
    Part No. Description Brochure
    41012-NN-05 Stranded loose tube 50/125 OM2 fiber, Armored, PE Inner, Outer Jacket Download >>
    41012-NN-06 Stranded loose tube 62.5/125 OM1 fiber, Armored, PE Inner, Outer Jacket. Download >>
    41012-NN-09 Stranded loose tube 9/125 OS1 fiber, Armored, PE Inner, Outer Jacket Download >>
