Hosiwell Type IBI Series

Product Description

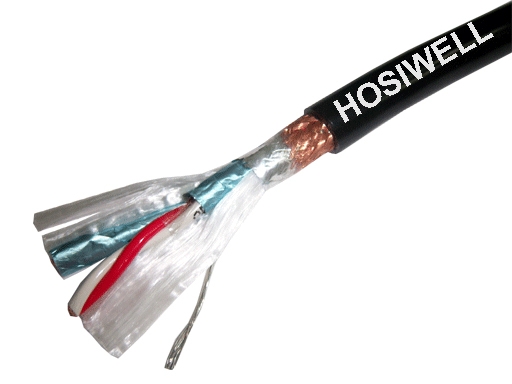

Hosiwell IBI Process Control Cable and Instrument Cable

As a premium cable manufacturer, Hosiwell manufactures Process Control and Instrument Cable series in best quality.

Marking on the cable surface: HOSIWELL CABLE IBI-X.XXXXP SHIELDED CONTROL CABLE ..... E125840 - T (UL) TYPE CL3 105°C XXAWG LL80602 CSA AWM IIA FT1 XXAWG 105°C 600V

Application

• For process controls and instruments
• Installed in cable trays, raceways, conduit, or aerial
• UL type CL2, CL3 vertical tray flame certified

Specifications & Hosiwell Unique Features

• Bare copper conductor
• Color or number coded PVC, PE, PP insulation available
• Individual shielded each pair and overall shielded with aluminum - mylar tape 100% coverage
• Bare copper braid shield 90% coverage
• Tinned copper drain wire (22AWG , 7/0.26)
• Weatherproof and sunlight resistance PVC jacket
• Anti-ant and rodent resistant PVC jacket available
• Rated temp. 105°C (PVC), 75°C (PP,PE), rated voltage 600V
• UL File No.: E125840 , CSA File No.: LL80602 (UL type CL2, CL3, and CSA type AWM FT1 Listed)
